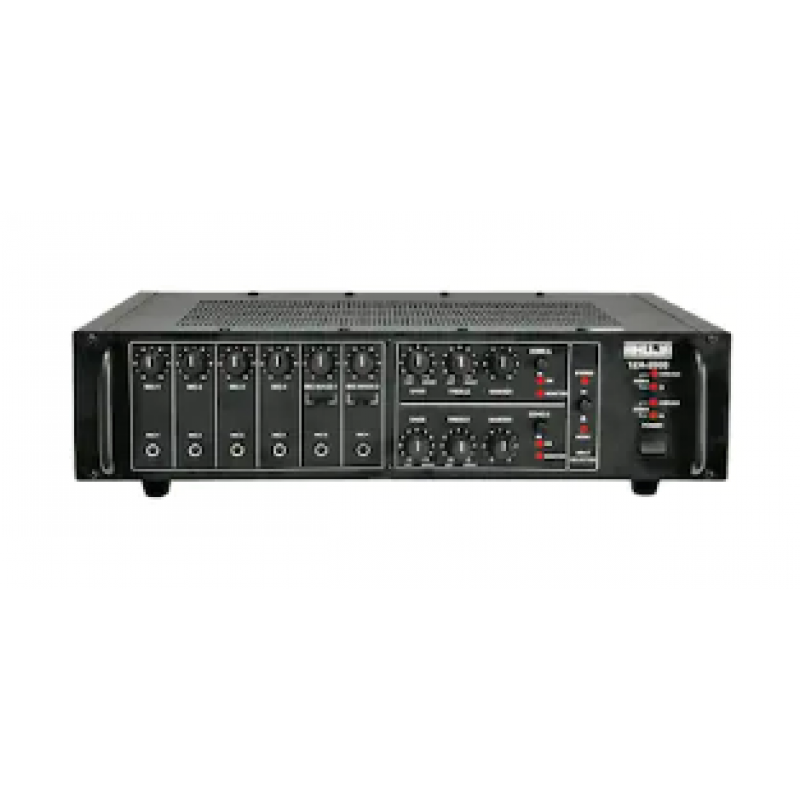

Ahuja Two Zone PA Amplifier [TZA-2000]
Specification
BrandAhujaPower SupplyAC: 220-240V 50/60Hz, DC: 24V (2x12V Car Battery)Frequency Response50-15,000Hz +/- 3 dBSignal To Noise Ratio60 dBSpeaker Output4ohm, 8ohm, 70V & 100V for each zoneTypePA AmplifierOutput VoltagePreamp 200mV/600, Line 1V/1kOutput Power130W + 130W Max., 100W + 100W RMS at 10% THD, 90W + 90W RMS at 5% THD, 80W + 80W RMS at 2% THDProduct Weight17.4000 kgProduct Dimensions500 x 140 x 340 mmPowerAC: 420VA, DC: 6.5AWattage200 wInput Channel FunctionsMono 6 x Mic 0.6mV/4.7k, 2 x Aux 100mV/470k, Stereo L/R 250mV/47kTone ControlsBass: +/- 10dB at 100Hz, Treble: +/- 10dB at 10kHzOutput Regulation</- 2 dB, no load to full load at 1kHzProduct ModelTZA-2000
Brand
Ahuja
Power Supply
AC: 220-240V 50/60Hz, DC: 24V (2x12V Car Battery)
Frequency Response
50-15,000Hz +/- 3 dB
Signal To Noise Ratio
60 dB
Speaker Output
4ohm, 8ohm, 70V & 100V for each zone
Type
PA Amplifier
Output Voltage
Preamp 200mV/600, Line 1V/1k
Output Power
130W + 130W Max., 100W + 100W RMS at 10% THD, 90W + 90W RMS at 5% THD, 80W + 80W RMS at 2% THD
Product Weight
17.4000 kg
Product Dimensions
500 x 140 x 340 mm
Power
AC: 420VA, DC: 6.5A
Wattage
200 w
Input Channel Functions
Mono 6 x Mic 0.6mV/4.7k, 2 x Aux 100mV/470k, Stereo L/R 250mV/47k
Tone Controls
Bass: +/- 10dB at 100Hz, Treble: +/- 10dB at 10kHz
Output Regulation
</- 2 dB, no load to full load at 1kHz
Product Model
TZA-2000
